Business Object Metadata
Reference documentation for using the Ivanti Neurons for ITSM Business Object Metadata action
Written By Support Channel
Last updated Over 1 year ago
Overview of the Business Object Metadata action
The Business Object Metadata action allows you to retrieve detailed schema information for any business object in Ivanti Neurons for ITSM using the Metadata API.
Understanding the Business Object Metadata action
The Business Object Metadata action helps you explore the internal structure of any business object within Ivanti Neurons for ITSM. This action will output the following:
Neurons for ISM System
Select the Ivanti Neurons for ITSM system that the schema will be retrieved from.
Business Object
Specify the exact name of the business object. For example: Incident
Working with Business Object Metadata action
The action provides comprehensive visibility into the internal data schema of a Business Object, allowing you to fully understand how the object is structured and how it can be used for future workflows or integrations.
Create and manage Business Object Metadata actions
Add a Business Object Metadata action
Add the action
Use the following steps to add the action to a workflow.
How to add an action to a workflow
How to add an action to a workflow
Click the ‘plus’ symbol on the workflow path at the point you want to insert the action. This opens the action menu slide-over.
Either:
Search for the action using the Search field above the actions in the menu.
Locate a Recently Used action in the top section of the menu.
Navigate to the action within menu: Core actions are listed under Actions, while Plugin actions are contained within their associated integration.
Select the desired action to insert it. This reveals the action’s configuration panel.
Use the Name field to name the action. This can help users to understand your workflow at a glance. (optional)
Use the Description field to add information describing the action. This can help users wanting to understand how your workflow functions (optional).

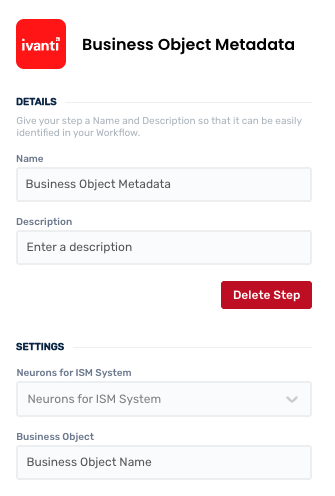

Configure the action
Use the following steps to configure the action.
Set values for the Neurons for ISM System and Business Object.
Click back in the main view to hide the slide-over.
Delete a Business Object Metadata action
Use the following steps to remove the action from your workflow:
How to remove an action from a workflow
How to remove an action from a workflow
Access the workflow in draft mode to edit it.
Either:
hover your mouse cursor over the action, and then click the red cross that appears over the top-right corner of the action to delete it. Or:
click on the action to open the action slide-over. Click the red 'Delete Step’ button to remove the action from your workflow.
Click Publish in the top-right to commit your changes.
Take care when deleting an action to also remove any logic using its outputs: workflow steps may function incorrectly or break if they attempt to evaluate an output of a deleted action.
