Introduction to the Adaptive Card Designer

Guidance on how to create new card definitions using Microsoft's Adaptive Card Designer

Written By Kevin Baker

Last updated 5 months ago

Overview

This page supports understanding of the different parts of Microsoft’s Card Designer and how to get started using it to support creating new Adaptive Card definitions to use in OneBot

Understanding the panes in the designer

  1. Open the link to the Designer.

  2. The menubar along the top provides options to set the host app, the target version, and to preview the card.

  3. The left column displays card elements that can be added to a card

  4. The large panes in the middle present views of the card as it is being designed.

    1. An interactive preview of the card

    2. The card structure

    3. The element properties of the selected element

  5. The lower panes display the JSON that represents the card and its sample data

    1. Card payload editor on the left

    2. Sample data editor on the right

Fig. 1 - The Adaptive Card Designer

The card payload editor

The card payload editor (panel 5a in figure 1) defines the actual card: the other panes only support the development of the JSON here. Furthermore, the panes along the top (the preview, card structure etc.) update to reflect the card as it is defined in the card payload editor

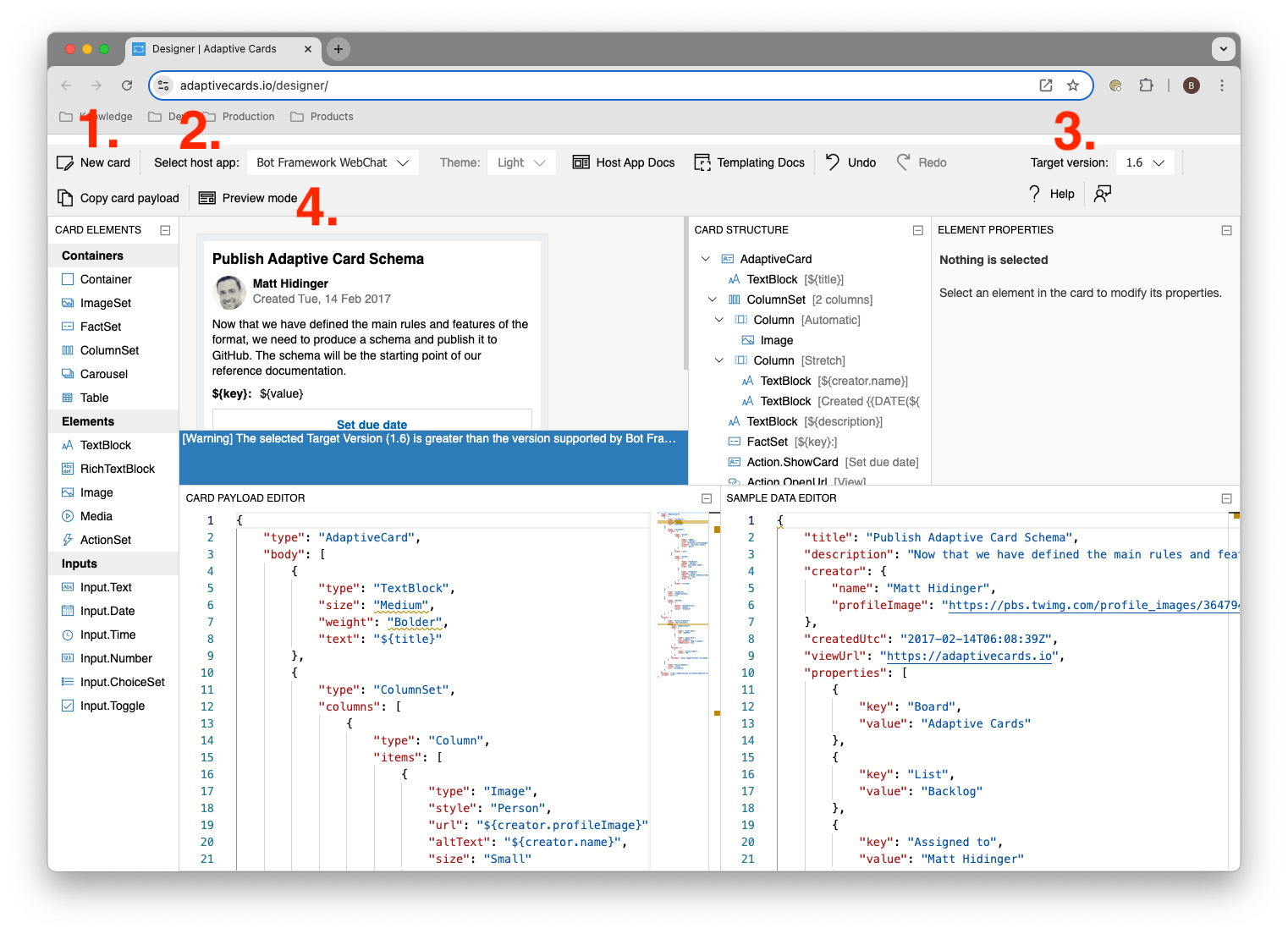

Useful features

  1. New card button reveals a card template library to use as starting points for new cards

  2. Select host app dropdown lets you set the designer to target the correct app

  3. Target version dropdown allows you to select the correct adaptive card version - apps are not all current with the lates version, so select the version appropriate to your target app.

  4. Preview mode simulates an interactive card, allowing functionality to be tested.

Fig. 2 - Useful features in the designer

The Adaptive Card Hub

Microsoft are building a resource centre for Adaptive Cards called the Microsoft Adaptive Card Hub. The hub is a good place to look for inspiration and sample cards. They also offer an alternative card designer there with a slightly different feature set.
